Centrifugal Pump Fluids Engineering Training Equipment Teaching Equipment Didactic Equipment

ZM7116A Centrifugal Pump Fluids Engineering Training Equipment Teaching Equipment Didactic Equipment
1. Description

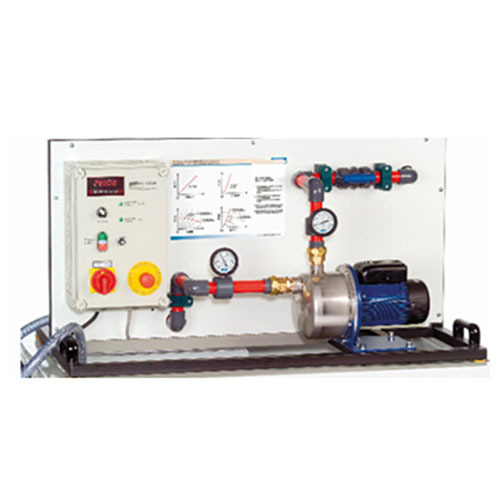

Centrifugal pumps are turbomachines that are used for conveying fluids. The unit can be used to study a centrifugal pump and to record a typical pump characteristic curve.
The experimental unit includes a self-priming centrifugal pump, a ball valve on the outlet side and manometers on the inlet and outlet side. It is driven by an asynchronous motor. The speed is infinitely adjustable by using a frequency converter. A ball valve is used to adjust the head.
In experiments, the operating behaviour of the pump as a function of the flow rate is studied and displayed in characteristic curves. The motor’s speed and electrical power are displayed digitally. Pressures on the inlet and outlet side are displayed on two manometers.
The experimental unit is positioned easily and securely on the work surface of the base module. The pump draws in water from the tank on the base module. The flow rate is determined volumetrically by flowing back into the measuring tank.

2.Specification
investigation of a centrifugal pump
drive with variable speed via frequency converter
ball valve to adjust the head
manometers on the inlet and outlet side of the pump
digital display of speed and power
flow rate determined by base module
water supply using base module
3Phase Variable Speed
