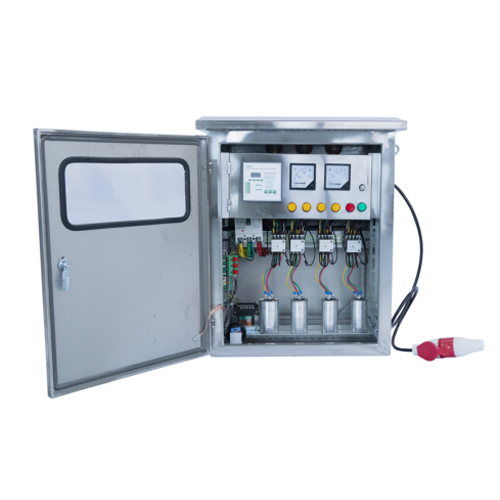

TB220505S01 Capacitor Bank Didactic Equipment School Educational Equipment Vocational Trainer Workbench Electrical Training Equipment1. Equipment introduction
1.1 Overview
This low-voltage reactive power compensation box is suitable for rural and urban distribution networks and internal distribution networks of industrial and mining enterprises. Power compensation; It can also be used for on-site reactive power compensation of low-voltage power grids and power equipment in factories, mines, petroleum, chemicals, railways, ports and other industries. Using single-chip microcomputer control technolgy, the sampling signal measurement system is a three-phase analog or three-phase electronic type. The measurement and switching thresholds can be set by the user or controlled by fuzzy logic; the work is stable and reliable; the actuator that controls capacitor switching is dedicated to switching capacitors. The capacitive non-contact switch is suitable for situations where the load changes frequently.
Using this device brings the following benefits:
Improve the power factor of the grid without returning reactive power
Stabilize voltage and improve distribution voltage quality
1.2 Features
•Capacitors: 4 cylindrical laminated polypropylene dielectric, 3 1 kvar capacitors and 1 3 kvar capacitor.
• Contactors: 4 20 amps.
•Controller: Automatic.
Cabinet: with IP54 protection level.
Thermal magnetic switch
•Input protection: thermal magnetic switch.
•Highest level of protection: 4 x 20 amp thermal magnetic switches.
•Voltage type: three-phase.
•Voltage: 240V. Additional features
Additional features of the above components:
6-level automatic controller.
• Discharge resistor in each capacitor or overcurrent limiting inductor.
indicator light
•Two (2) indicator lights, one (1) red and one (1) green.
cabinet
• Metal cabinet with key.
•One (1) command and control transformer.
2. Technical parameters
Ambient temperature: -25℃~55℃ (In places where the temperature is lower than -25℃, there are also specially treated products.)
Relative air humidity: maximum relative humidity 90% (at 20°C)
Environmental conditions: No explosive or flammable hazardous media, no gases that corrode metal and conductive dust that destroys electrical insulation
Maximum precipitation intensity: 50mm/10min
Voltage fluctuation range: -15%～+10%
3. Components list and detailed introduction
3.1 Main part:
|
No
|
Name
|
Features
|
|
1
|
Intelligent reactive power compensation controller
|
Improve the safety and stability of the power grid. Intelligent reactive power compensation controller can effectively suppress power load fluctuations, voltage fluctuations and other phenomena in the power grid, reduce power outage time, and improve the reliability and stability of power supply.
Reduce power loss Intelligent reactive power compensation controller can effectively control the reactive power in the power grid, reduce valley current and harmonics in the power system, reduce power loss, and improve power utilization and efficiency.
|
|
2
|
Voltmeter
|
Measuring the voltage in a circuit
|
|
3
|
Ammeter
|
Measuring the magnitude of current in a circuit
|
|
4
|
breaker
|
Make and break lines
|
|
5
|
Terminal block
|
Connect and transmit signals
|
|
6
|
Ground wire
|
Eliminate static electricity from equipment shells
|
|
7
|
AC transformer
|
Measure, protect and safely isolate
|
|
8
|
transformer
|
Voltage conversion: Voltage converters can increase or decrease voltage to ensure the voltage levels required by different devices or systems
|
|
9
|
capacitance
|
Filtering effect: signals in certain frequency bands can be removed from the total signal.
|
|
10
|
Three-phase five-wire power cord
|
Provide a common power supply to the entire device
|
|
11
|
flow contactor
|
Turn power on and off. As a key component in the control circuit, the AC contactor can control the on and off of large current circuits to control electrical equipment.
protect the circuit. The AC contactor has an overcurrent or protection function, which can automatically disconnect the power supply when the circuit is abnormal (such as overload) and protect the connected electrical equipment from damage.
|
|
12
|
Yellow indicator light
|
Act as a reminder in the device
|
|
13
|
red indicator light
|
Act as a reminder in the device
|
|
14
|
Green indicator light
|
Act as a reminder in the device
|
3.2 Accessories
|
No
|
Name
|
Qty
|
|
1
|
Equipment wiring diagram
|
1
|
|
2
|
Intelligent reactive power compensation controller manual
|
1
|
4. Experiment list
Experiment 1 [Design requirements and functional characteristics of intelligent reactive power compensator]
Experiment 2 [Operation experiment of intelligent reactive power compensation controller]
