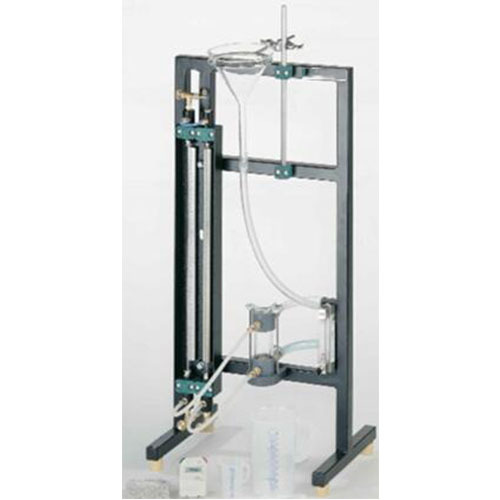

SR3005B Cake and Depth Filtration Fluids Engineering Training Equipment Educational Equipment Vocational Training Equipment
The unit shall perform the following experiments and investigations:
Learning Objectives / Experiments
fundamentals of filtration: Darcy’s equation
depth filtration with different bulk solids and suspensions
cake filtration with different suspensions
identification of characteristic filtration values
Balance

Specification
[1]fundamentals of cake and depth filtration
[2]filter element with sintered filter medium on its bottom to capture the particles
[3]pressure loss measurement with twin tube manometers
[4]height-adjustable filler hopper made of DURAN glass
[5]flow meter with needle valve for adjustment
Technical Data Filter element
filter chamber height: 85mm
inside diameter: approx. 37mm
cross-sectional area: approx. 11cm²
tube material: DURAN glass
Filter medium, sinteredfilter SIKA 100
pore size: 100µm
thickness: 2mm
material: sintered metal Measuring ranges
flow rate: 40...360mL/min
pressure: 2x 0...500mmWC
temperature: -10...100°C
measuring cups
1x 1000mL, scale division: 10mL
1x 100mL, scale division: 2mL
Dimensions and Weight LxWxH: 450x410x1040mm Weight: approx. 30kg
Material of construction: stainless steel
