ZF0313 Bench Mounting Shower Didactic Equipment Vocational Education Equipment Fluid Mechanics Lab Equipment
I. Product Overview

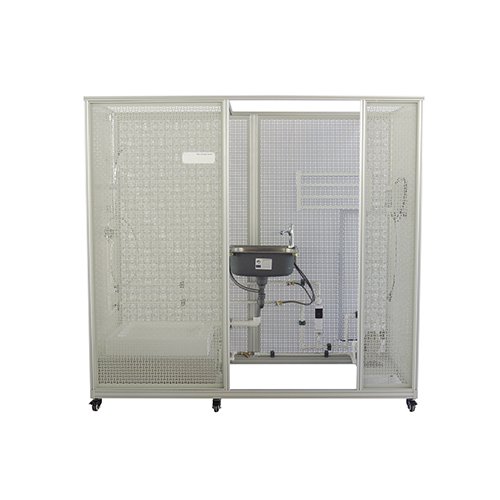

Overview: Fixed wall made of perforated steel sheet for fixing pipes and components, equipped with corner washbasin, mock water heater, towel drying rack, waste water tank, water pump and shower.
Features: Closed on three sides, can be entered from one side, simple structure, clear, easy to operate and learn, large water tank capacity, can be used for long-term teaching.
II. Performance Parameters
Input power: AC220V
Weight:<400Kg
Working conditions: use under AC220V power supply, the temperature should not be lower than zero, in case the water freezes in the pipeline and causes the pipeline to freeze and crack
Size: 2355mm*1165mm*2320mm
III. Components List
Main part:
|
Number
|
Name
|
|
1
|
Shower Assembly Bench Body
|
|
2
|
Stainless steel water tank
|
|
3
|
Shower mixer valve
|
|
4
|
Shower head
|
|
5
|
Towel drying rack
|
|
6
|
Washbasin faucet
|
|
7
|
Sink
|
|
8
|
Analog water heater
|
|
9
|
Water pump
|
|
10
|
Power waterproof box
|
Power waterproof box part:
|
Number
|
Component name
|
|
1
|
2P circuit breaker with leakage protection
|
|
2
|
Without leakage protection 2P circuit breaker
|
|
3
|
Without leakage protection 2P circuit breaker
|
|
4
|
Without leakage protection 2P circuit breaker
|
Component part:
|
Number
|
Name
|
|
component 1
|
Water pump
|
|
component 2
|
Stainless steel water tank
|
|
component 3
|
Towel dryer
|
|
component 4
|
Analog water heater
|
|
component 5
|
Take a shower
|
|
component 6
|
Sink
|
IV. Experimental List
Experiment 1 Pipeline system water injection test experiment
Experiment 2 Water pump pressure test experiment
Experiment 3 Understand the rules of pipe layout and installation
Experiment 4 Understand how the toilet works
Experiment 5 Circuit breaker leakage protection experiment
