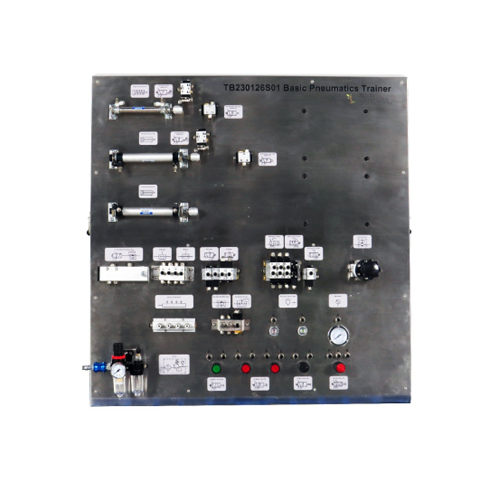

Name: Basic Pneumatics Trainer Pneumatic Training Equipment Didactic Equipment Vocational Training Equipment
Brand: SSEDU Vocational Training Equipment
SKU: TB230126S01
Availability: InStock
Rating: 5 (1 reviews)

Description

TB230126S01 Basic Pneumatics Trainer Pneumatic Training Equipment Didactic Equipment Vocational Training Equipment

I. Product Overview
1.1 Product Description
It consists of an air service unit, a pneumatic actuator, a pneumatic component group and a power valve kit. Through the trainer, you can become familiar with the basic usage of a single component. Understand and design experiments to achieve different purposes by cooperating between different components.
Through the trainer, you can master its principles and control methods and cultivate the corresponding knowledge and skills of testers. It is suitable for teaching and skill training assessment of related majors
1.2 Product Features
1. No special installation requirements and power interface are required
2. Stable operation, more reliable and durable during use due to simpler gas circuit
3. Fast response speed, the response speed can reach millisecond level within the controllable range
II. Performance Parameter
2.1 Technical Parameters
Pneumatic indicator light: operating pressure 0.1-0.8Mpa
Air compressor and air pump oil-free machine: 220V, 550W, 8L
2.2 Dimensions and Weight
Dimensions: 900*400*878mm
Weight:<100kg

III. Product component names and function introduction
3.1 Product main part

No.	Name
1	Triplet
2	3/2 way button valve (often open)
3	3/2 way button valve (normally closed)
4	3/2 way knob valve
5	3/2 way knob valve
6	Pressure gauge
7	Pneumatic indicator light
8	Fast exhaust valve
9	Reunion valve
10	Gas source allocation
11	Delay valve
12	Dual pressure valve
13	Shuttle valve
14	3/2 way conversion valve (often open)
15	3/2 way conversion valve (normally closed)
16	Dual air control 5/2 way reversing valve
17	Single air control 5/2 way reversing valve
18	Single air control 3/2 way reversing valve
19	Sequential valve
20	Dual -action cylinder
21	Single-action cylinder
22	Roller -type limit switch
23	Lex leverage limit switch

3.2 Product accessories

No.	Name
1	Trachea
2	Trachea scissors
3	Tracheal block
4	Pneumatic T connector joint
5	Straight joint
6	Spring trachea

IV. Product Configuration List

No.	Name	Quantity
1	Triplet	1
2	Air sources	1
3	Delay valve	1
4	Dual pressure valve	1
5	Shuttle valve	1
6	3/2 way conversion valve (often open)	2
7	3/2 way conversion valve (normally closed)	1
8	Reunion valve	1
9	Fast exhaust valve	1
10	3/2 way button valve (often open)	2
11	3/2 way button valve (normally closed)	2
12	3/2 way knob valves	1
13	5/2 way knob valve	1
14	Pressure gauge	1
15	Pneumatic indicator light	2
16	Sequential valve	1
17	Single air control 3/2 way reversing valve	2
18	Single air control 5/2 way reversing valve	1
19	Dual air control 5/2 way reversing valve	3
20	Dual -action cylinder	2
21	Single -action cylinder	1
22	Roller -type limit switch	2
23	Lex leverage limit switch	2
24	air pump	1
25	trachea	50m
26	Trachea scissors	1
27	Tracheal block	10
28	Pneumatic T connector joint	5
29	Straight joint	2
30	Spring trachea	1

V. Experiment list
Experiment 1 Dual -action cylinder test experiment
Experiment 2 Slotting valve test experiment
Experiment 3 Delay valve test experiment
Experiment 4 Dual pressure valve test experiment
Experiment 5 Testing of shuttle valve test experiments
Experiment 6 Subvant valve test experiment
Experiment 7 Dual air control 5/2 way reversing valve test experiments
Experiment 8 Single air control 5/2 way reversing valve test experiments
Experiment 9 Test experiment of roller -type limit switch and leverage limit switch switch
