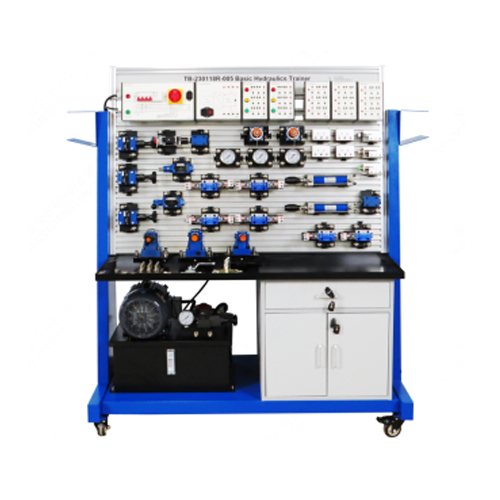

Name: Basic Hydraulics Trainer Hydraulic Training Equipment Didactic Equipment Vocational Training Equipment
Brand: SSEDU Vocational Training Equipment
SKU: TB-230118R-005
Availability: InStock
Rating: 5 (1 reviews)

Description

TB-230118R-005 Basic Hydraulics Trainer Hydraulic Training Equipment Didactic Equipment Vocational Training Equipment
1. Product Introduction
1.1 Product Description
Through this trainer, students can master the structure of hydraulic components, hydraulic circuit control theory, hydraulic circuit design, and the hands-on ability of hydraulic trainers.
This trainer is flexible and students can design their own hydraulic circuits.
1.2 Product Features
Compatible with all commonly used hydraulic components: Each hydraulic component is equipped with a mounting plate, which can be easily and freely placed in the aluminum alloy hydraulic component on the panel (aluminum alloy structure with "T" groove on the panel). The oil ring adopts a quick-change joint; it is easy to disassemble and assemble, and there is no leakage. Through this set of practical training equipment, you can conduct hydraulic control circuits and their corresponding basic application experiments. They can also be integrated with each other for electro-hydraulic control experiments.
2. Technical specifications
2.1 Technical parameters
Power supply parameters: three-phase five-wire AC 380V±10% 50Hz
2.2 Dimensions and weight
Dimensions: 1400mm×700mm×1650mm
Weight: <400kg
3. Product component names and function introduction
3.1 Product main body

No.	Name
1	Frame
2	Hydraulic station
3	Cabinet
4	Universal wheel

3.2 Product electrical part

No.	Name
1	Main power module
2	Inverter module
3	Button module
4	Relay module

3.3 Product accessories

No.	Name
1	2mm safety connection cable 100CM Red
2	2mm safety connection cable 100CM Black
3	Oil pipe, 600mm
4	Oil pipe, 1000mm
5	Oil pipe, 1500mm
6	Extended hexagon wrench (9 pieces)
7	Power connection cable
8	Female connector

3.4 Introduction to Hydraulic Components
1. Double-acting Hydraulic Cylinder
2. Throttle Valve
3. Single-phase throttle valve
4. Direct-acting relief valve
5. Three-position four-way solenoid reversing valve with double electric control
6. Stroke valve
7. Two-position four-way manual reversing valve
8. Speed regulating valve
9. Pilot relief valve
10. Sequence valve (pilot type)
11. Hydraulic control check valve
12. Pressure reducing valve (pilot type)
13. Check valve
14. Pressure relay
15. Oil distributor block with pressure gauge
16. Capacitive sensor
17. Inductive sensor
18. Photoelectric sensor
19. Micro switch
20. Hydraulic station
21. Two-position four-way single-electric solenoid reversing valve

4. Product Configuration List

No.	Name	Quantity
1	Double-acting hydraulic cylinder	2
2	Throttle valve	2
3	Check throttle valve	2
4	Direct-acting relief valve	3
5	Three-position four-way solenoid directional valve (M)	1
6	Three-position four-way solenoid directional valve (O)	1
7	Three-position four-way solenoid directional valve (Y)	1
8	Three-position four-way solenoid directional valve (H)	1
9	Travel valve	1
10	Two-position four-way solenoid directional valve single solenoid control	2
11	Two-position four-way manual directional valve	1
12	Speed control valve	2
13	Pilot-operated relief valve	1
14	Sequence valve (pilot)	1
15	Hydraulic control check valve	2
16	Pressure reducing valve (pilot)	1
17	Check valve	1
18	Pressure relay	1
19	Three-way	6
20	Five-way	4
21	Glycerin pressure gauge	3
22	Hydraulic ball valve	1
23	Capacitive sensor	1
24	Inductive sensor	1
25	Photoelectric sensor	1
26	Micro switch	4
27	Gear pump hydraulic station	1
28	Main power module	1
29	Inverter module	1
30	Button module	1
31	Relay module	1
32	Hydraulic oil pipe 0.6m	6
33	Hydraulic oil pipe 1m	10
34	Hydraulic oil pipe 1.5m	2
