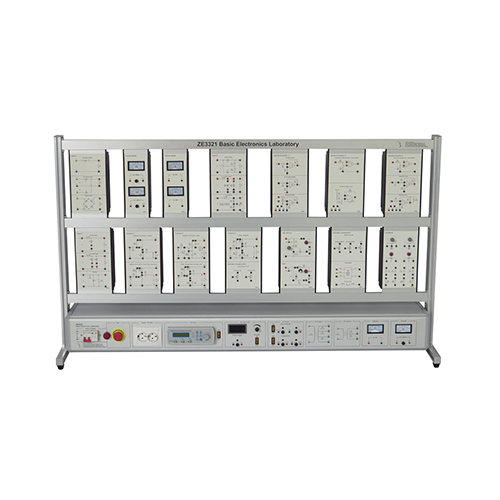

ZE3321 Basic Electronics Laboratory School Training Bench School Laboratory Equipment Educational Electrical Training EquipmentI.Product Overview
1.1 Overview
This practical training set includes various electronic experiments to cultivate students' corresponding knowledge and skills, and is suitable for teaching and skills training and assessment in related majors in higher vocational colleges, higher technicians, secondary vocational schools and technical schools.
1.2 Features
1. The training platform adopts an aluminum column frame structure, and the power supply is built-in and integrated, making it safe and convenient to use and not easily damaged.
2. The unit circuit hanging box is fully configured and can be used in combination, and the correction and training content is complete.
3. The relevant unit hanging boxes can be set up flexibly for experimental subjects to meet the requirements of different users.
4. The training platform has a good safety protection system.
II.Performance Parameter
Input power: single-phase three-wire 220V±10% 50Hz
Size: 1650mm*450mm*990mm
Weight:<64kg
Working conditions: Ambient temperature: -10℃～+40℃
Relative humidity: <85% (25℃)
III.Components List
3.1 Main Part
|
Number
|
Name
|
|
1
|
Diode No. 1 hanging box
|
|
2
|
Ammeter hanging box
|
|
3
|
Voltmeter hanging box
|
|
4
|
Diode No. 3 hanging box
|
|
5
|
Operational Amplifier Hanging Box No.1
|
|
6
|
Operational amplifier hanging box No.3
|
|
7
|
Operational Amplifier hanging box No. 2
|
|
8
|
Diode hanging box No. 2
|
|
9
|
Transistor No.1 Hanging Box
|
|
10
|
Transistor No. 2 Hanging Box
|
|
11
|
Transistor No. 3 hanging box
|
|
12
|
Two-way thyristor hanging box
|
|
13
|
Field effect transistor hanging box
|
|
14
|
Load hanging box
|
3.2 Power Box Part
|
Number
|
Name
|
|
1
|
2P circuit breaker with leakage protection
|
|
2
|
Red indicator light
|
|
3
|
Emergency button
|
|
4
|
European socket
|
|
5
|
Signal generator
|
|
6
|
Switch button
|
|
7
|
Voltmeter
|
|
8
|
Adjustment knob
|
|
9
|
Indicator light
|
|
10
|
Fuse
|
|
11
|
Switch button
|
|
12
|
DC 12V power module
|
|
13
|
AC output module
|
|
14
|
AC output module
|
|
15
|
DC 5V power module
|
|
16
|
Voltmeter
|
|
17
|
Ammeter
|
3.3 Accessories
|
Number
|
Name
|
Quantity
|
|
1
|
2mm electrical cable 50CM black
|
10
|
|
2
|
2mm electrical cable 100CM red
|
10
|
|
3
|
2mm electrical cable 100CM blue
|
5
|
|
4
|
2mm electrical cable 100CM black
|
5
|
|
5
|
2mm electrical cable 100CM yellow
|
5
|
|
6
|
Multimeter
|
1
|
|
7
|
Fuse 0.1A 5*20
|
6
|
|
8
|
Fuse 0.5A 5*20
|
6
|
|
9
|
Fuse tube 3A 5*20
|
10
|
|
10
|
Oscilloscope cable
|
1
|
|
11
|
2mm electrical cable black clamp head
|
1
|
|
12
|
2mm electrical cable red clamp head
|
1
|
IV. Experiment List
Experiment 1 Half-wave rectification test experiment
Experiment 2 Full-wave rectification test experiment
Experiment 3 Bridge rectifier test experiment
Experiment 4 common collector amplifier circuit
Experiment 5 Forward clamp circuit test experiment
Experiment 6 Differential Circuit Test Experiment
Experiment 7 Integrating Circuit Test Experiment
Experiment 8 Summing Circuit Test Experiment
Experiment 9 N-type field effect transistor test experiment
Experiment 10 times voltage circuit test experiment
Experiment 11 Zener (regulator) diode parallel circuit test experiment
Experiment 12 Zener (regulator) diode series circuit test experiment
Experiment 13 One-way thyristor circuit test experiment
Experiment 14 Bidirectional Diode and Triac Circuit Test Experiment
Experiment 15 One-way limiting circuit test experiment
Experiment 16 Common base amplifier circuit test experiment
Experiment 17 Common emitter amplifier circuit test experiment
Experiment 18 Common emitter voltage stabilized bias amplifier circuit test experiment
Experiment 19 Common collector voltage divider amplifier circuit test experiment
Experiment 20 Zero-crossing detection circuit test experiment
Experiment 21 Non-zero crossing detection circuit test experiment
Experiment 22 Oscillation circuit test experiment
