I. Product Overview
1.1 Product Description

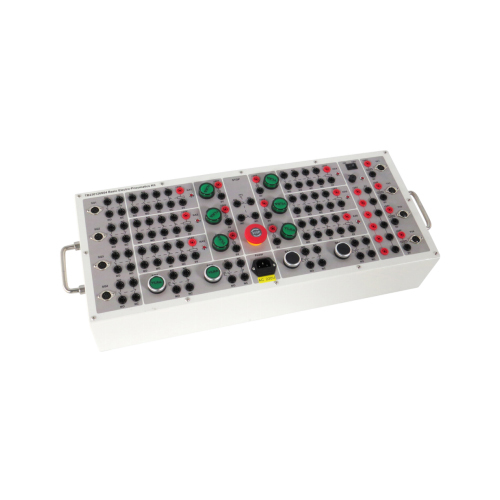

The equipment consists of an intermediate relay, a 24V indicator light load, an emergency stop switch, a 24V power output, an electromagnetic coil, a travel switch coil, a self-locking and self-reset button, etc.
It is suitable for experiments with other equipment and can help experimenters understand electrical equipment.
1.2 Product Features
1. High reliability and durability.
2. Avoid overload use.
3. Multiple configurations to adapt to different circuit requirements.
4. High isolation to ensure circuit safety.
5. Fast response to reduce control delay.
6. Easy to operate and quick response.
7. Stable structure, suitable for occasions with frequent operation.
8. Low power consumption, suitable for long-term operation.
9. High-precision counting, suitable for precise control.
II. Performance Parameter
2.1 Technical Parameters
Input power: Single phase, three wires, AC220V, 50Hz
2.2 Dimensions and Weight
Dimensions: 800mm×280mm×190mm
Weight: <50kg

III. Product component names and function introduction

3.1 Product main part

3.2 Product accessories

1. Product Configuration List

V.Experiment List
Experiment 1 Intermediate relay test
