ZF0314 Banc Montage WC Didactic Equipment Vocational Training Equipment Fluid Mechanics Lab Equipment
I. Product Overview

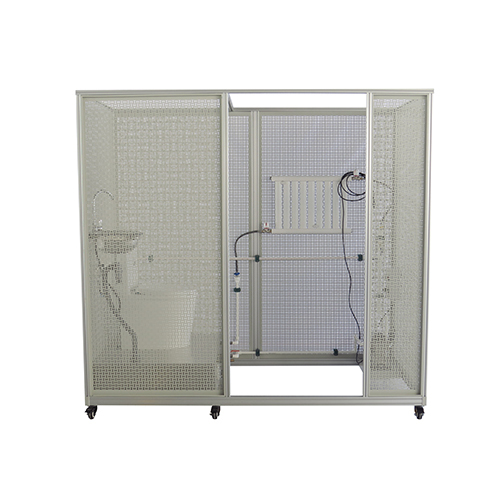

Overview: fixed wall made of perforated steel sheet for fixing pipes and components, toilet assembly station with corner washbasin, toilet, radiator, waste water tank, water pump.
Features: Closed on three sides, can be entered from one side, simple structure, clear, easy to operate and learn, large water tank capacity, can be used for long-term teaching.
II. Performance Parameters
Input power: AC220V
Weight:<400Kg
Working conditions: use under AC220V power supply, the temperature should not be lower than zero, in case the water freezes in the pipeline and causes the pipeline to freeze and crack
Size: 2340mm*1160mm*1150mm
III. Components List
Main part:
|
Number
|
Component name
|
|
1
|
Toilet assembly stand body
|
|
2
|
Toilet
|
|
3
|
Corner wash basin
|
|
4
|
Washbasin faucet
|
|
5
|
Stainless steel water tank
|
|
6
|
Radiator
|
|
7
|
Water pump
|
|
8
|
Power waterproof box
|
Power box part:
|
Number
|
Component name
|
|
1
|
2P circuit breaker with leakage protection
|
|
2
|
220V red indicator light
|
|
3
|
220V green indicator light
|
|
4
|
Load switch
|
Component part:
|
Number
|
Name
|
|
Component 1
|
Water pump
|
|
Component 2
|
Stainless steel water tank
|
|
Component 3
|
2P circuit breaker with leakage protection
|
|
Component 4
|
Red light
|
|
Component 5
|
Green light
|
|
Component 6
|
Load switch
|
IV. Experimental List
Experiment 1 Pipeline system water injection test experiment
Experiment 2 Water pump pressure test experiment
Experiment 3 Understand the rules of pipe routing and installation
Experiment 4 Learn how a toilet works
Experiment 5 Circuit breaker leakage protection experiment
