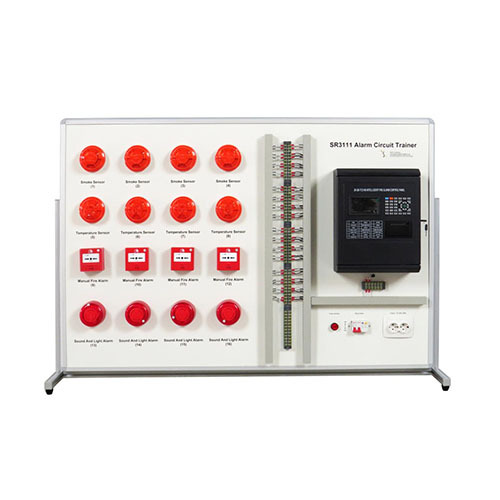

SR3111 Alarm Circuit Trainer Building Automation Wire Trainer Teaching Equipment Vocational Training Equipment
1. Product Introduction
1.1 Product Description
This system can simulate the working process of the fire alarm system, so that students can have a preliminary and intuitive understanding of the fire alarm system, familiarize themselves with the composition, connection, and operating principles of the fire alarm system, and cultivate students' corresponding knowledge and skills. It is suitable for teaching and skill training assessment in higher vocational colleges, secondary vocational schools, and technical schools.
1.2 Product Features
(1) The training platform adopts an aluminum profile frame structure, and the unit is flexible and easy to use, and not easy to damage.
(2) The experimental circuits and devices are fully configured and can be used in combination to complete the training content of various subjects.
(3) The training platform has a good safety guarantee system.
2. Technical Specifications
2.1 Technical Parameters
Control Panel Capacity:
Up to two loop control panel control loops, each loop has 255 addressable points.
Temperature: 0 ℃ ~ +40 ℃
Relative humidity: ≤95%, no condensation
Power supply: AV 220V (3A), voltage range +10%~-15%
Backup power supply: DC 24V (10A), backup battery: 12V/12AH sealed lead-acid battery
2.2 Dimensions and weight
Dimensions: 1500*410*1570mm
Weight:<100kg

3. Product component names and function introduction
3.1 Product main body
No.    Name
1    Fire host
2    Power indicator
3    Circuit breaker
4    Socket
5    Terminal block
6    Smoke alarm (1~4)
7    Heat alarm (5~8)
8    Manual alarm (9~12)
9    Sound and light alarm (13~16)
3.3 Product accessories
No.    Name
1    Manual alarm key
2    Button battery
4. Product Configuration List
No.    Name    Qty
1    Fire host    1
2    Power indicator    1
3    Circuit breaker    1
4    Socket    1
5    Terminal block    2
6    Smoke alarm (1~4)    4
7    Heat alarm (5~8)    4
8    Manual alarm (9~12)    4
9    Sound and light alarm (13~16)    4
10    Manual alarm key    5
11    Button battery    1
5. Product teaching experiment list
(1) Alarm registration and programming
(2) Smoke alarm test
(3) Heat alarm test
(4) Manual alarm test
