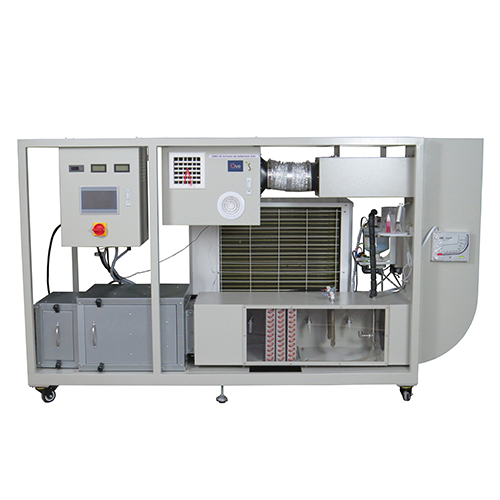

ZM8105 Air Handler Trainer School Teaching Equipment Air Conditioner Trainer Didactic Equipment1 Product overview
1.1 Overview
The user of the training unit studies a real air conditioning and ventilation system. The ventilation and airconditioning system includes an airconditioning unit, a filter element, a speedadjusting fan, an evaporator, an electric air heater and a steam humidifier. The following functions can be realized: heating/cooling, humidification/dehumidification. The experimental setup is controlled via a touch screen.
1.2 Features
The training device uses a steel frame as a whole, the exterior is sprayed with anticorrosion treatment, and the bottom is equipped with a universal wheel for easy movement. The panel is made of transparent acrylic material, which can observe the inside of the air duct very well.
2 Performance parameters
Input power: AC380V±10% 50Hz
Power: 3KW (connect with a circuit breaker of matching power to supply power on site)
Dimensions: 2300mm×1100mm×1350mm
Fan Power: 400W Speed: 1360 rpm Air volume 2000m³/h Full pressure 450pa
Electric heating power: 1KW
Humidifier Rated power: 2.78KW Steam capacity: 3kg/h
Main air duct size: 380x320mm
Total weight of equipment: <400kg
Working conditions: Ambient temperature 5℃～+40℃ Relative humidity ＜85%（25℃）
