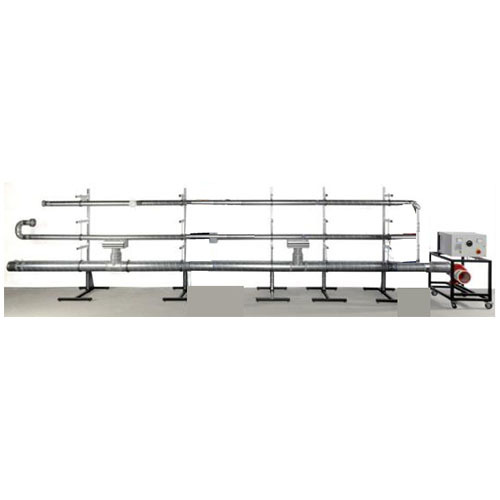

ZM7152 Air Duct Systems Fluids Engineering Training Equipment Educational Equipment Vocational Training Equipment
experimental setup for training in ventilation engineering
radial fan, on mobile frame, to connect air ducts
air ducts from galvanised folded spiral-seam pipe with pipe bends, joints and components
pressure measuring connections with variable locations
6 assembly stands to attach the air ducts
inclined tube manometer and digital manometer for 2 different measuring ranges
measuring of the air velocity by anemometer
switch cabinet with display of current and voltage

Technical Data
Fan
- power consumption: 900W
- max. flow rate: 1680m³/h
- max. differential pressure: 1000Pa
- speed: 0...2840min-1
Pipes
- length: 1600mm
- diameter: 8x DN200, 8x DN100
Pipe bends and connections, each DN100 and DN200
- 90° pipe bend, 45° pipe bend
- 45° branch
- T piece, T piece with reducer
- reducer, plug-in connection, pipe coupling
Flow restriction elements, each DN100 and DN200
- throttle valve
- iris diaphragm
Filters, each DN100 and DN200
- pocket filter
- filter cartridge
Measuring ranges
- pressure: 0...200Pa / 0...2000Pa
- velocity: 0.25...30m/s
- current: 0...10A
- voltage: 0...230V
Dimensions and Weight
LxWxH: 800x810x1250mm (fan)
Weight: approx. 422kg (total)
