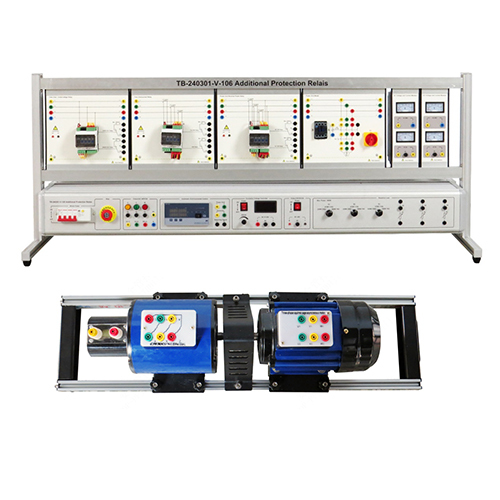

During the operation of the power system, there is often a set of auxiliary protection systems for monitoring the operation status of the power system. It is mainly used to detect and respond to specific faults or abnormal conditions to enhance the reliability of the main protection system. The additional protection relay is one of the auxiliary systems. Its main functions include: (1) Fault detection, identifying abnormalities such as short circuit, overload, and ground fault; (2) Signal output: After detecting a fault, it sends a signal to the circuit breaker or control system to trigger the protection action; (3) Backup protection: Provide an additional layer of protection when the main protection fails.
|
No |
Name |
Qty |
|
1 |
Aluminum alloy frame |
1 |
|
2 |
Power box |
1 |
|
3 |
Three-phase synchronous generator |
1 |
|
4 |
Three-phase squirrel cage asynchronous motor |
1 |
|
No |
Name |
Qty |
|
1 |
Overvoltage/undervoltage relay box |
1 |
|
2 |
Overcurrent relay box |
1 |
|
3 |
Power and reverse power relay box |
1 |
|
4 |
Power grid module box |
1 |
|
5 |
AC voltage and current meter box |
2 |
|
6 |
Circuit breaker |
1 |
|
7 |
Emergency stop switch |
1 |
|
8 |
Automatic grid controller |
1 |
|
9 |
Three-phase power output interface |
1 |
|
10 |
Excitation voltage controller |
1 |
|
11 |
DC 24V power output interface |
1 |
|
12 |
Adjustable load module |
3 |
|
No |
Name |
Qty |
|
1 |
4mm safety connection cable 1m green |
10 |
|
2 |
4mm safety connection cable 1m yellow |
10 |
|
3 |
4mm safety connection cable 1m black |
10 |
|
4 |
4mm safety connection cable 1m blue |
5 |
|
5 |
4mm safety connection cable 1m two-color |
5 |
|
6 |
4mm safety connection cable 1m red |
10 |
|
7 |
2mm safety connection cable 1m red and black |
8 |
|
8 |
DB9 connecting line |
1 |
|
9 |
U-bridge 4mm safety connection cable black |
1 |
|
10 |
USB conversion 485 device |
1 |
|
11 |
Fuse 3A 5*20 |
5 |
|
12 |
Fuse 4A 5*20 |
10 |
|
13 |
Fuse 5A 5*20 |
10 |
|
14 |
Software USB disk |
1 |
|
15 |
Zhongzhi communication interface conversion module |
1 |
|
16 |
Phase tester |
1 |
|
17 |
Motor base |
1 |
|
18 |
Industrial socket |
1 |
(1) Wiring and experimental demonstration of overvoltage/undervoltage relay module
(2) Wiring and experimental demonstration of overcurrent relay module
(3) Wiring and experimental demonstration of power and reverse power relay
